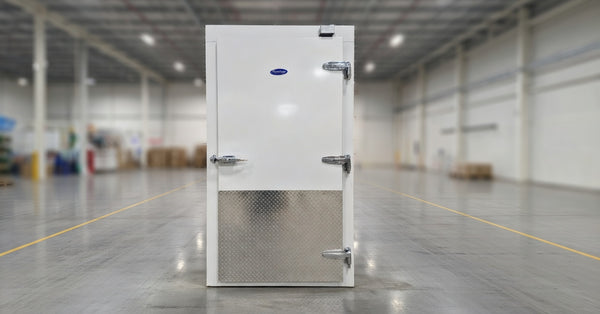

Face (Case) Mount Custom Walk In Door
We build your replacement door to your exact specifications using commercial-grade materials. Built-to-order for coolers & freezers — exact fit guaranteed or we remake it free.
Face (Case) Mount Custom Walk In Door
Strivide custom doors are engineered for commercial refrigeration with 4" polyurethane foam cores for superior insulation, commercial-grade hinges rated for 500,000+ cycles, and a magnetic cam-lift seal that self-closes against the frame — eliminating cold air loss and reducing compressor load by up to 15%.
| Core Insulation | 4" CFC-free polyurethane foam |
| R-Value (Freezer) | R-32 (freezer) / R-25 (cooler) |
| Panel Skin Options | 304 Stainless · Embossed Galvalume · White Galvalume |
| Width Range | 24" – 72" (custom to 1/8") |
| Height Range | 48" – 96" (custom to 1/8") |
| Hinge System | Cam-lift, self-sealing magnetic |
| Seal / Gasket | 4-sided magnetic cam-action |
| Certifications | NSF/ANSI 7 · UL Listed · CFC-Free |
| Warranty | 10 years panel · 5 years hardware |
| Lead Time | 3–5 business days |
Custom doors ship via LTL freight on a reinforced pallet with foam corner protection. Liftgate service included. Expected transit: 2–4 business days after build completion. You will receive a tracking number and carrier call for delivery appointment. Damage must be noted on the delivery receipt at time of receipt.
A Visual Guide to Every Step
Not sure what to select? These expanded guides walk you through each configuration decision.
Unit Type, Hinge & Floor
Freezers require a thicker insulated panel (4") and a more robust gasket than coolers. Hinge side is determined by which side the door swings open from when you're standing outside the unit. Floor level affects the bottom sweep seal.
Measuring Your Opening
Measure the opening — not your current door. Measure width at three points (top, middle, bottom) and use the smallest. Measure height at three points (left, center, right) and use the smallest. We build to your exact 1/8" measurement.
Door Panel Material
All three materials offer equivalent thermal performance. Your choice comes down to environment, aesthetics, and budget.
304-Grade
Textured
Smooth White
Door Frame Configuration
The frame type depends on the condition of your existing opening. Most face-mount replacements use the standard Outside Face Door Frame. If your wall panel is damaged, consider the Full Retrofit Plug.

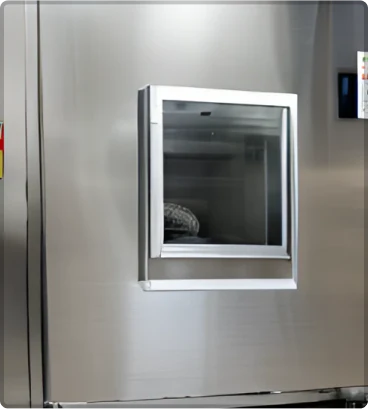

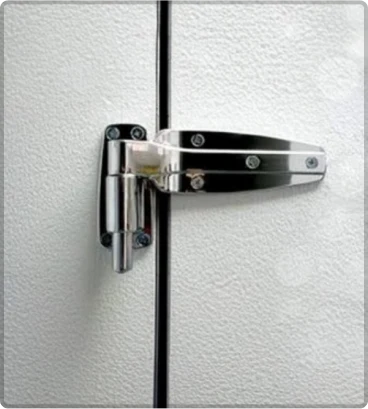

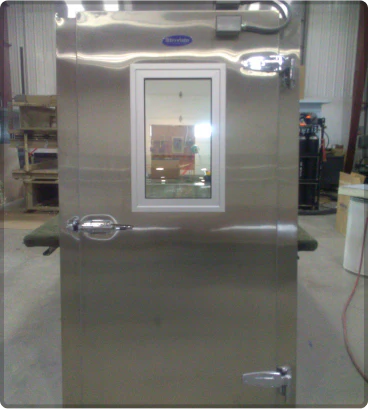

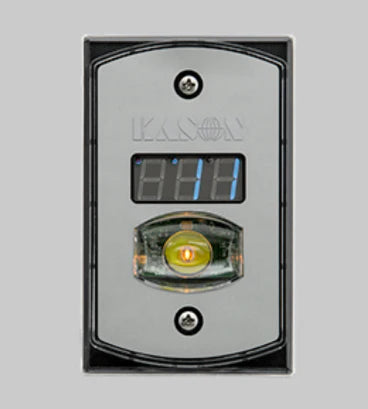

Optional Add-Ons

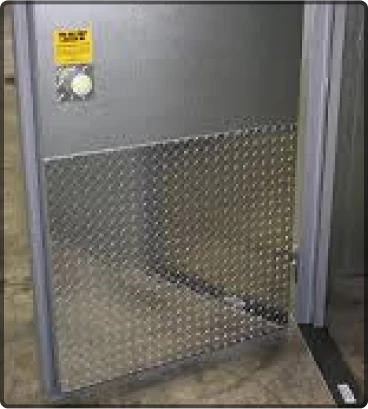

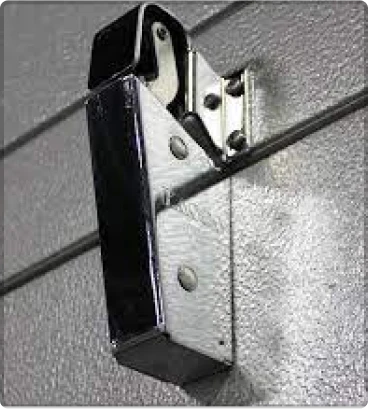

These upgrades are easier to install during manufacturing than after. We recommend the kick plate for any high-traffic kitchen and the door closer for all freezers.
High Quality Walk-In Doors Make Satisfied Customers
10-Year Panel Warranty
Every door ships with a full decade of coverage on foam core delamination, structural failure, and skin adhesion.
Ships in 3–5 Business Days
Custom-built to your specs and shipped via LTL freight with liftgate service and delivery appointment.
Exact-Fit Guarantee
If your door doesn't fit the dimensions you provided, we'll remake it at no charge. Your specs, our accountability.
US-Based Support
Call or chat with a refrigeration door specialist. We've helped 10,000+ facilities replace walk-in doors since 1985.
NSF & UL Certified Components
Every Strivide door that ships from our facility meets or exceeds the following industry standards for commercial refrigeration.
Before You Order
Two short videos — one on measuring, one on the Strivide door system itself.
Measuring Your Walk-In Opening
3-minute walkthrough. Learn exactly where to measure, how to account for out-of-square openings, and how to read fractions on your tape measure.
Strivide Door System Overview
See the foam core, cam-lift hinges, magnetic seal system, and panel options. Understand the quality difference before you buy.
What Our Customers Are Saying
"Ordered a custom freezer door after ours took a forklift hit. Measured it myself using FSG's guide and the door arrived in 4 days — fit perfectly. The stainless is beautiful and the magnetic seal is way better than our original."
"We've ordered 6 replacement doors across our three locations. Every single one has been exact to spec and the quality is consistent. The kick plates have saved us from replacing two doors already."
"Needed an odd-sized opening — 31 3/8" wide. FSG handled it without any issue. The door closer was a great add-on recommendation. Already seeing lower energy bills after three months."
Download Our Free Guide
Get our walk-in door specification guide — includes measurement worksheets, R-value comparison charts, and a full spec sheet for this door model.
No sign-up required. Instant download. 10,000+ doors shipped since 1985.
